LL980 STAINLESS STEEL COMPRESSION LOCK (FITS IN 2.5 INCH DIAMETER HOLE) (Copy)

Description

The LL980 boat stainless steel water tight compression lock. Durable cast stainless steel construction is polished to a mirror finish, and designed for vertical surfaces(not watertight on horizontal surfaces). Designed to withstand  heavy use on hatches such as live wells.

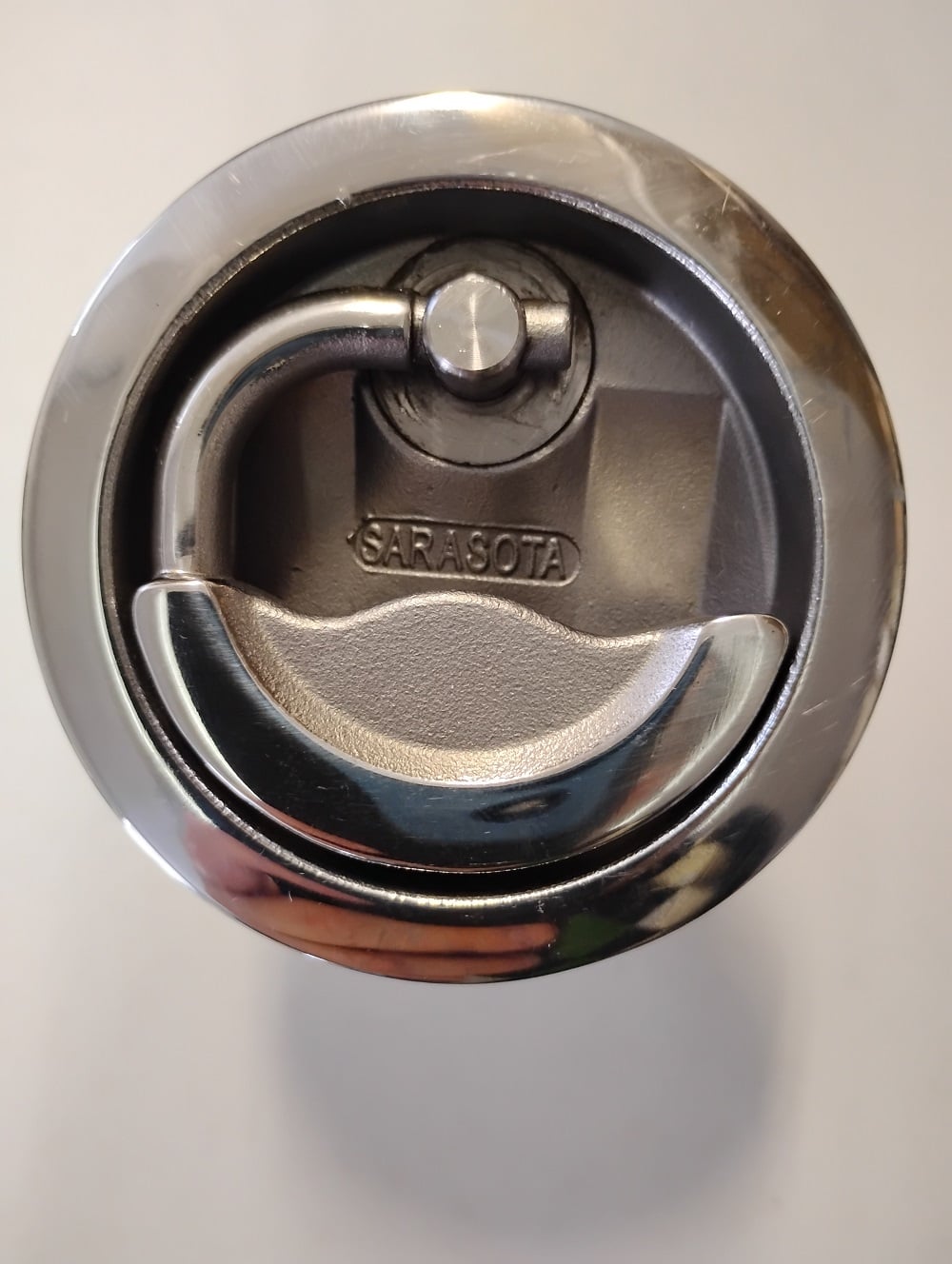

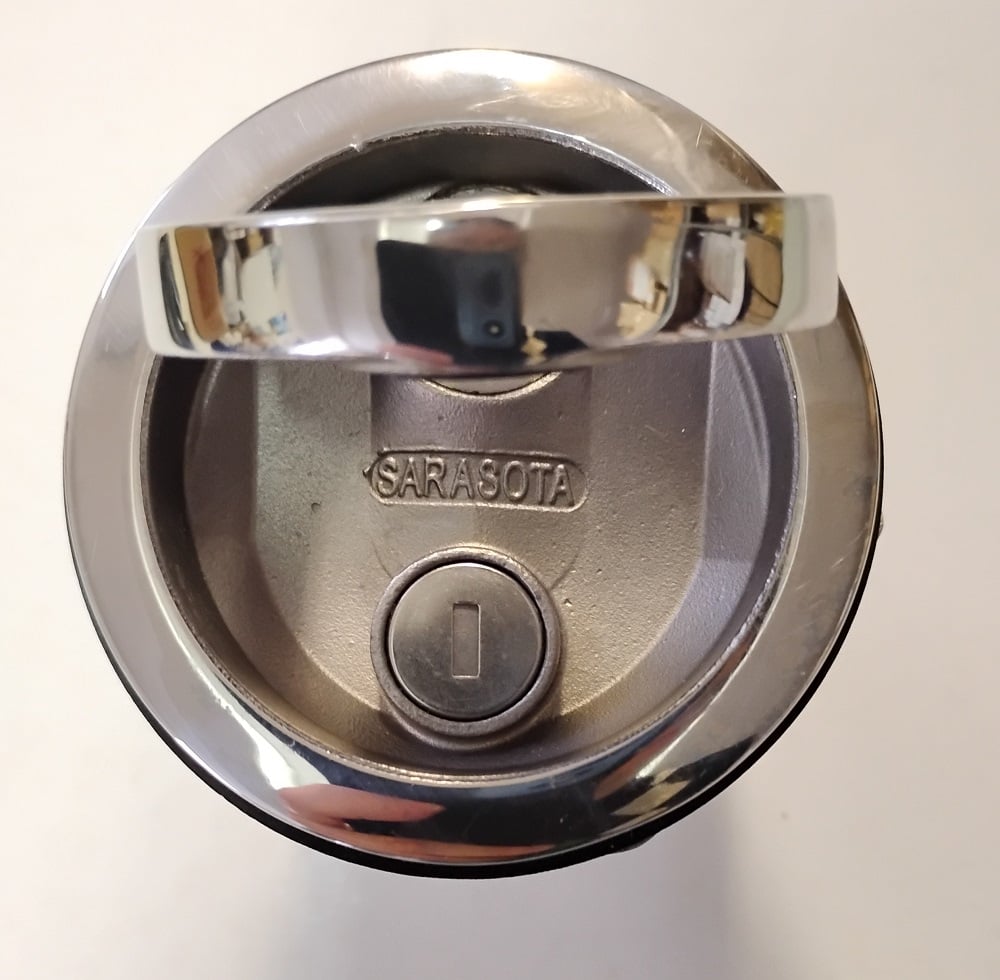

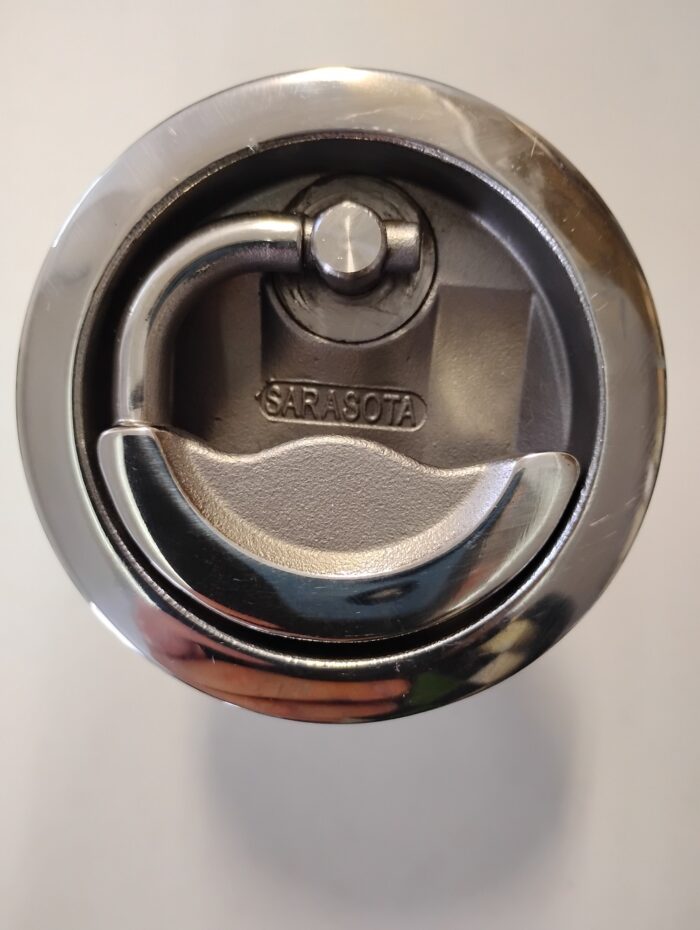

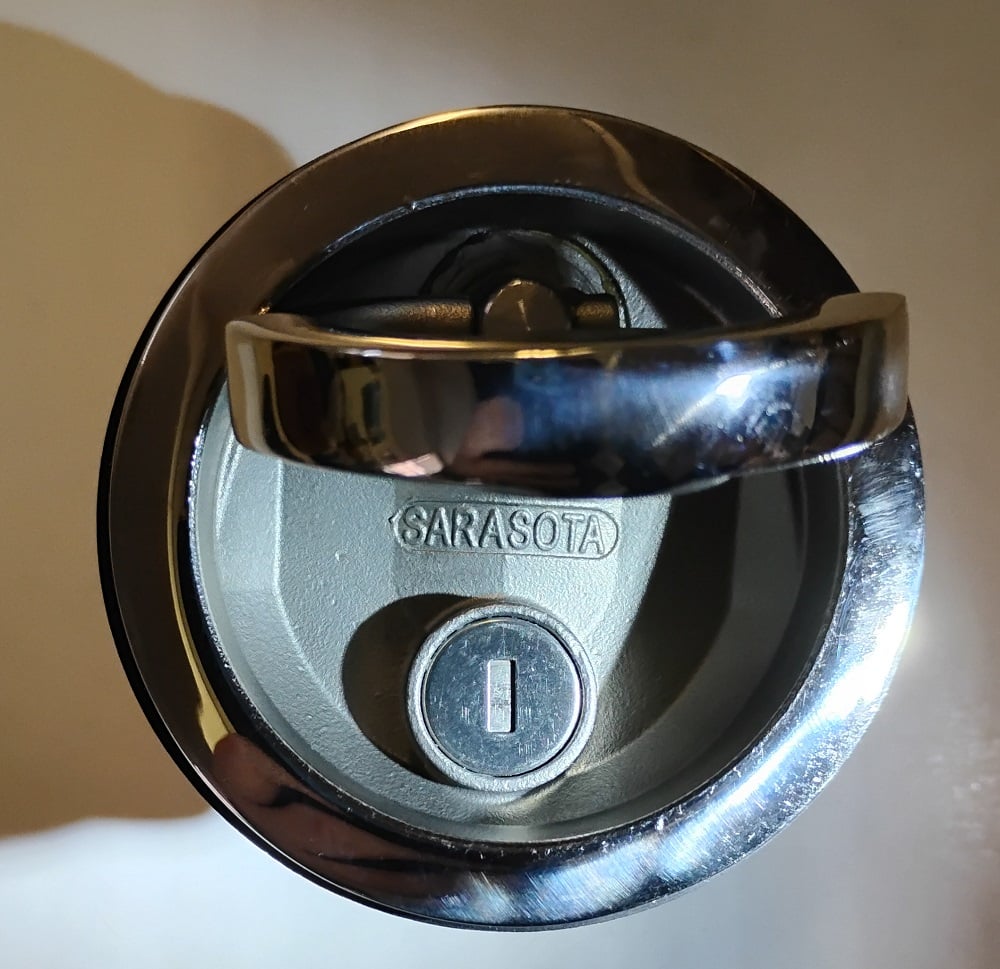

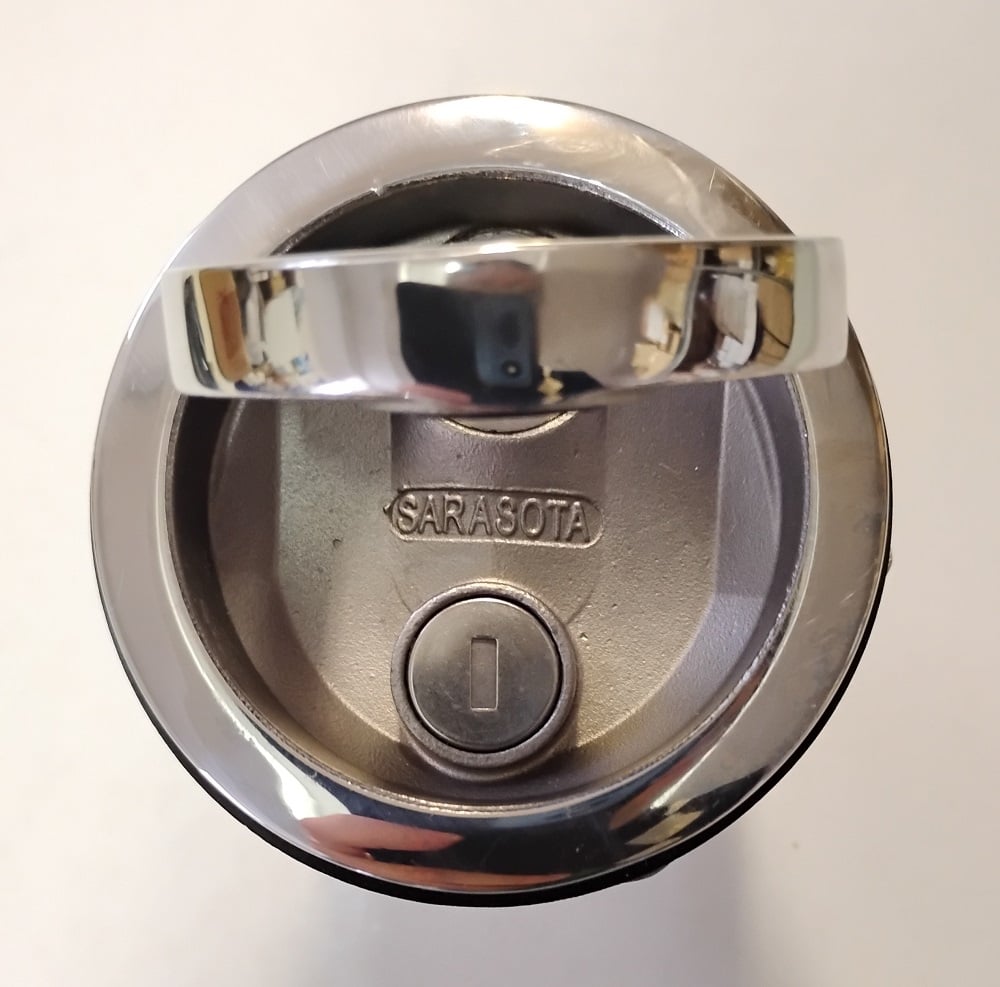

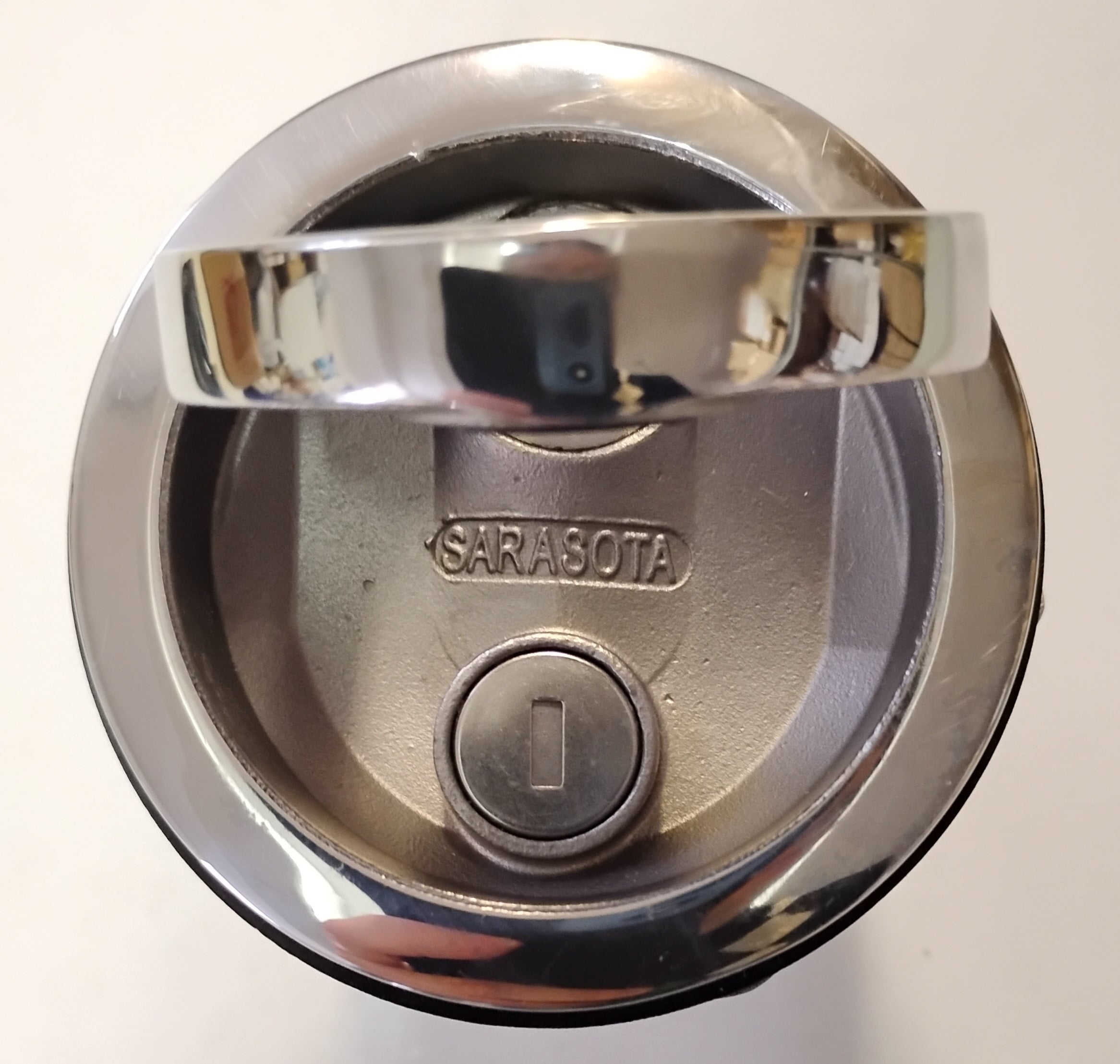

Lift handle operates compression and direction of cam; Pull up to allow handle to seat in vertical position and cam shaft extends down to ease tension. Push handle down to seat flush in housing and the cam shaft pulls upward to tightly position the cam against the framework for secure fit.

• Surface flange outside  diameter: 2.91″

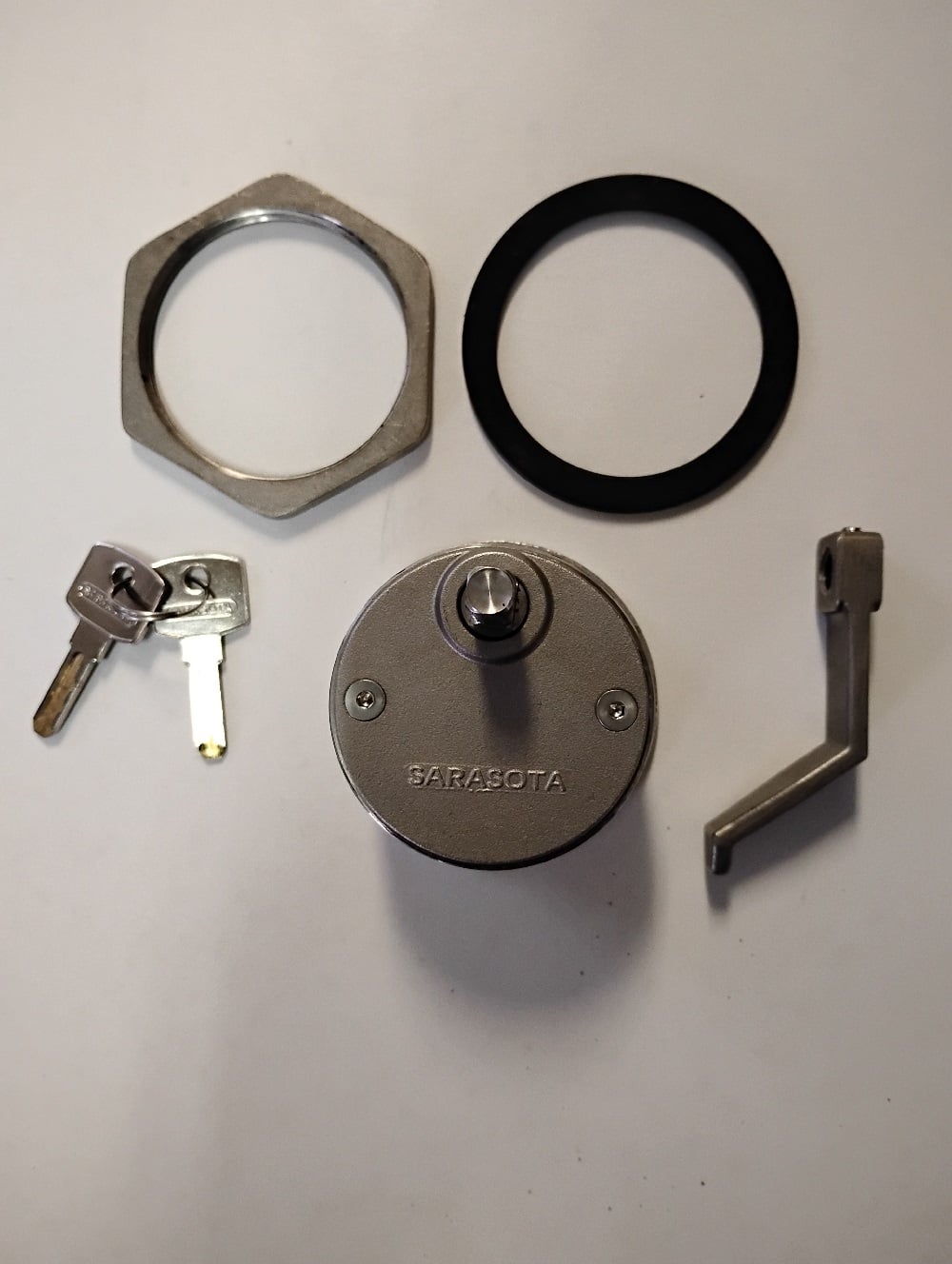

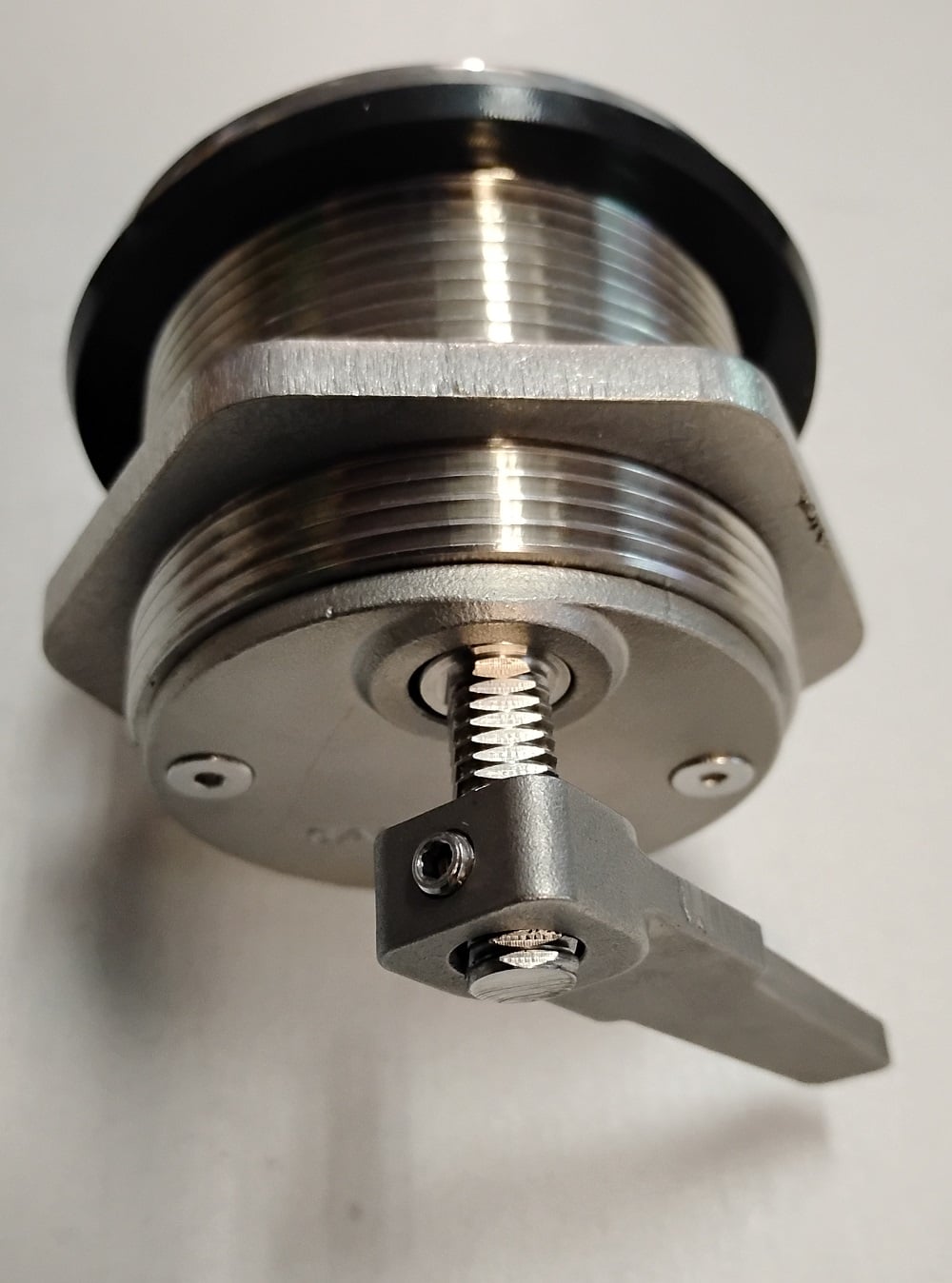

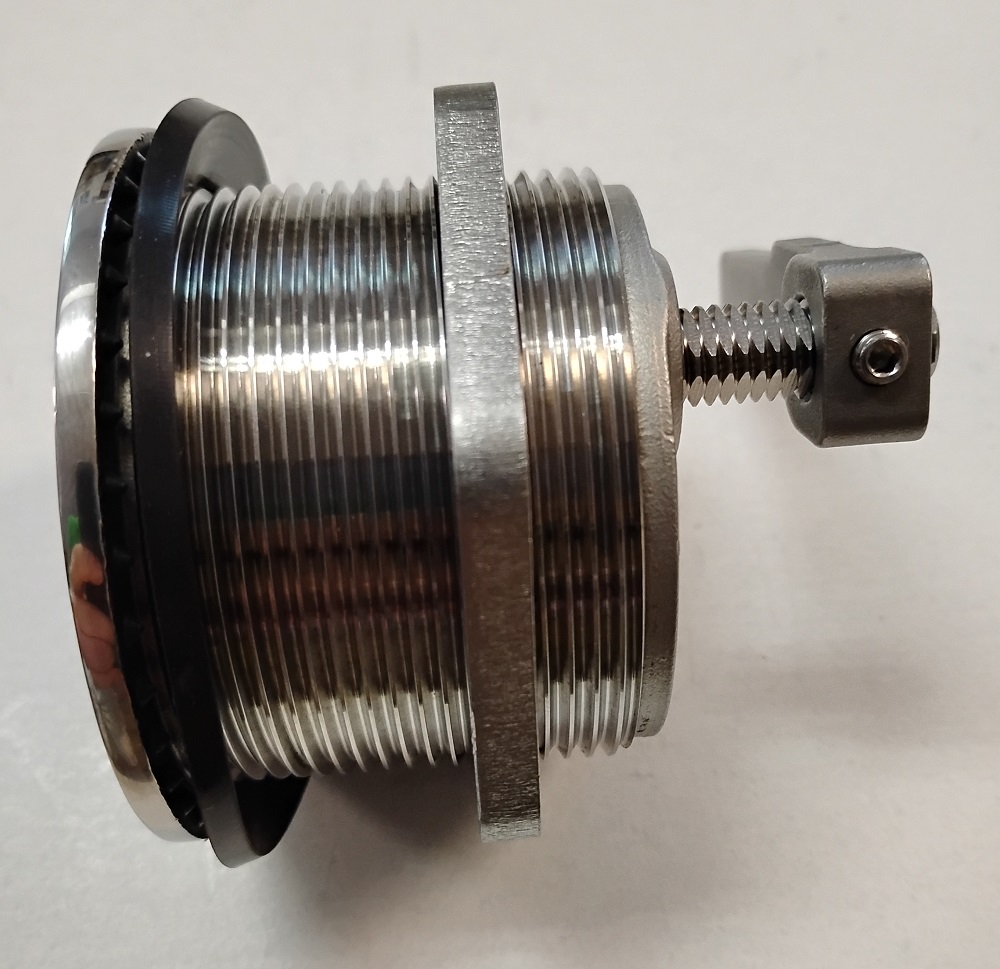

• Drilling Hole: 2.5″ and is secured from backside with Stainless Steel Nut
• Fits any hatch thickness
• Mirror Polished
• Stainless Steel Solid Cast Marine Boat Compression Lock

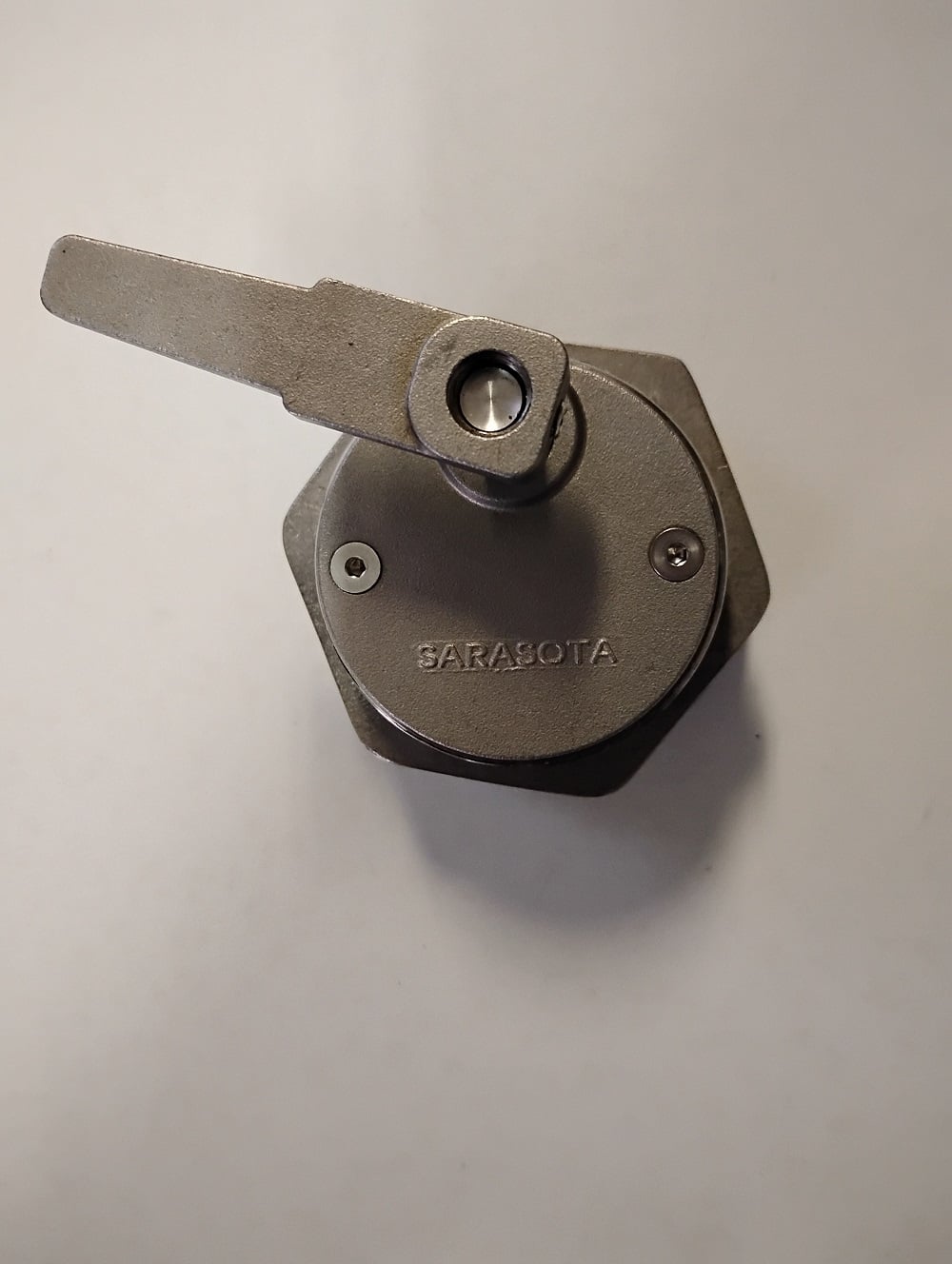

• Comes with 2.95″ long by 1.10″ offset cam
• Max depth for offset cam to reach below surface is 4″

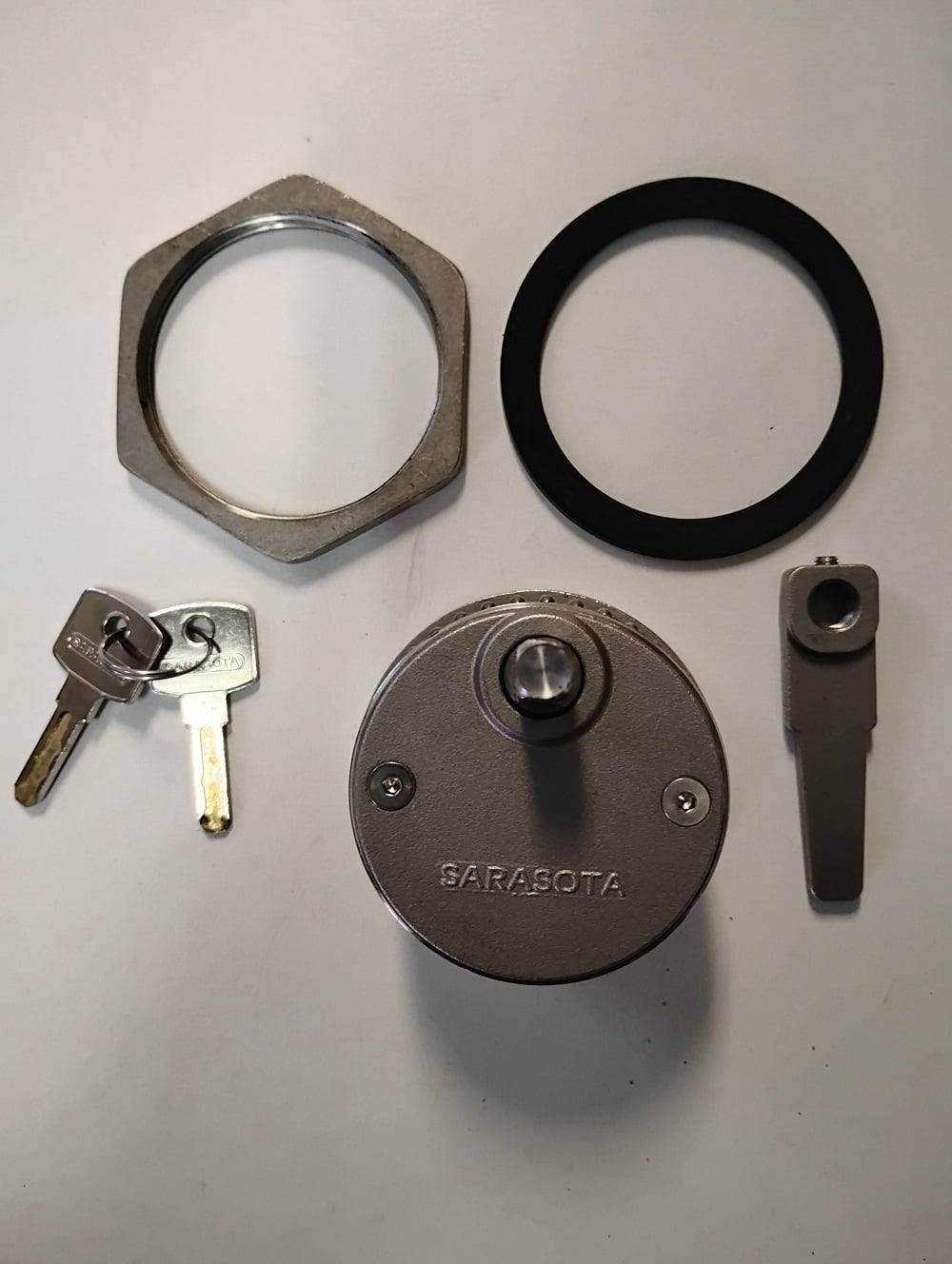

Choice of two cams:

2-5/16″ Straight or

2-3/4″ x 1-1/8″ Offset cam

Both are adjustable

For OEM pricing or questions call us at  440- 899-9820 or email us at SarasotaQP@aol.com.
